GOLD - the golden writing
You can use this effect anywhere, from graphics on your site to decorations in your collages. I like the outcome and I think many can learn here something about channels and their usage in what I call a basic method of making 3-D looking text.
If you are not patient, we will obtain the following two texts.

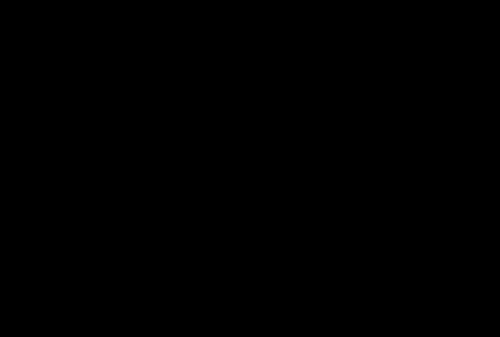

1. Make New Document, black background

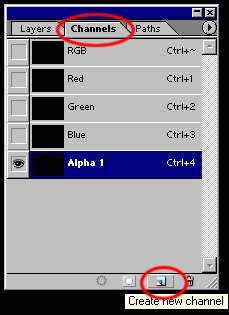

2. Swich to Channels, make New Channel
3. Use Type tool to write into the channel, it will be red when you write it, so when you have finished writing, click on that new channel that you have just made and the red writing will be converted to white.

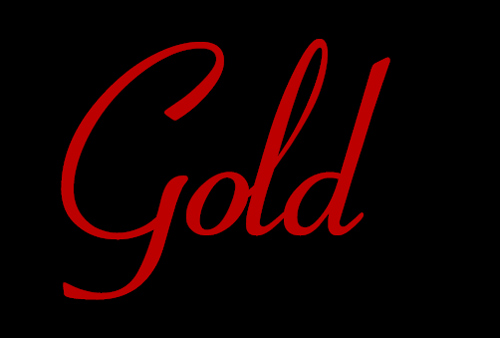

So here we are in the stage of writing

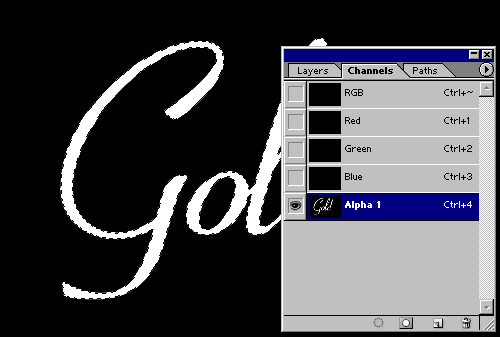

4. And here after finishing writing and clicking on that new channel (Alpha 1)
5. Now we will need to Duplicate the Alpha 1 Channel, so right click and Duplicate.
We have duplicated the layer for one reason. What we will do now is that we will Blur one of our Alpha channels. (I am sure that you know what channels are and that they can be also used for making selections. In the case you dont, I will be making tutorial on Channels in due course)
So, we will blur one of our Alpha channels, use Lightning effects to get nice distribution of lighter and darker spots on the text, and now comes the part where we use the original unblurred selection. We will select it, inverse it and delete what is not inside the text. Sounds easy? I certainly is. Lets continue.
As I said, we will need to blur one of the Alpha channels. The other thing that also needs to be done is to deselect current selection
6. So press Ctrl+D or go Select/Deselect.
